HOME >> Copper >>Cat6 >> FL-61BUI£¬FL-62BUI Cat.6 Unshielded Twisted Pair Cable,U/UTP,23AWG
Details

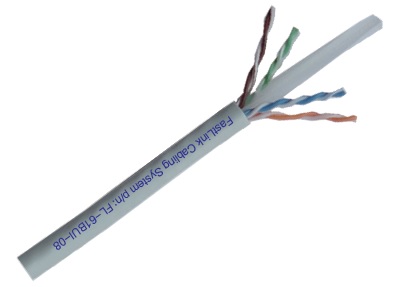

FL-61BUI£¬FL-62BUI Cat.6 Unshielded Twisted Pair Cable,U/UTP,23AWG

01 ÁùÀàÍøÏßFL-61BUI.jpg        ÁùÀà·ÇÆÁ±ÎË«½ÊÏ߽ṹͼV2.jpg


Product advantage

- It adopts advanced stranding process, conforms to ANSI / TIA 568.2-D Cat. 6, ISO / IEC 11801 2nd class E characteristic standard.

- The cable center adopts the cross isolation structure design to prevent the line pair deformation and effectively reduce the generation of crosstalk. The transmission bandwidth can reach up to 250MHz.

- Compatible with Fastlinkcabsys full series copper connectors.

- The outer skin is made of standard flame-retardant material and can be flame-retardant PVC and  LSOH low smoke halogen-free.

-Comply with ROHS 2011 / 65 / EU environmental protection standard.


Product characteristics

Non plenum fire rating: 60332-1 flame rated PVC, LSOH

Conductor wire gauge: bare copper wire, 0.565mm + 0 / - 0.02mm (23AWG)

Skin material: PVC or LSOH

Insulation material: HDPE

Cable OD: 6.0 + / -0.3mm

Rated transmission speed (NVP): 67%

Bending radius: 4xod without load

Maximum tensile force: 25lbf £¨11.34kg£©

Operating temperature: - 20 ¡æ to + 75 ¡æ

Max. operating voltage: ¡Ü48V


Meet the standards

ANSI/TIA 568.2-D Category 6

ISO/IEC 11801 2nd Edition Class E

EN 50173 2nd Edition

EN 50288-6-1

EN 55022 Class B

IEC 60332-1-2

IEC 60754-2¡¢IEC 61034-1¡¢IEC 61034-2


Can be used

10/100Base-T

1000Base-T

2.5G/5GBase-T

1.2/2.4 Gbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN¡¢VoIP

PoE+ compliant


Order information

Order information.jpg


Transmission performance (Typical value@ 20¡æ)

Transmission performance.jpg


P2.06.05_Cat.6 Unshielded Twisted Pair Cable,U-UTP,23AWG.pdf


P2.06.05_ÁùÀà·ÇÆÁ±ÎË«½ÊÏß U-UTP,23AWG.pdf
