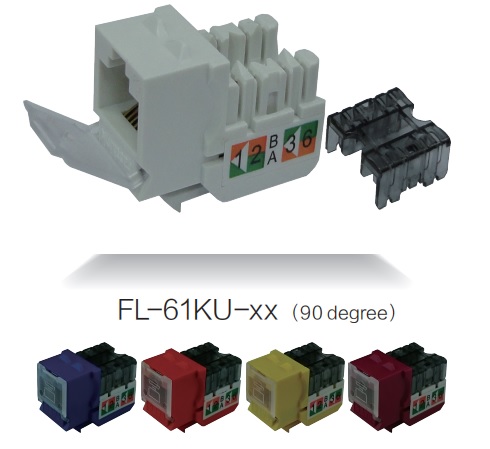

FL-61KU, FL-62KU Cat.6 Unshielded ModuleKeystone Jacks






Product advantage

-Cat.6 Unshielded Module complies with ANSI / TIA568 2-D Cat. 6ISO/IEC 11801 2nd Class E and EN50173 2nd edition standard; The transmission bandwidth is more than 250MHz.

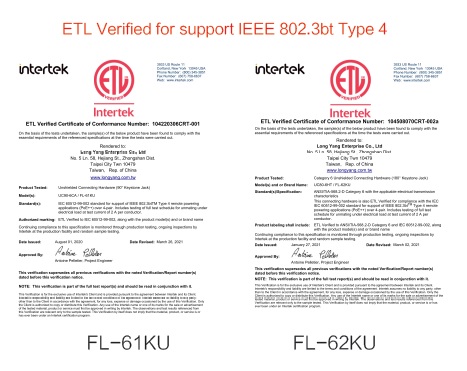

-Support PoE + + (Type 4) application and passed ETL test.

-The 110 IDC terminal of the circuit board adopts the press in technology, which can effectively reduce the capacitance effect and suppress the crosstalk.

-The module is equipped with a rotary dust cover to reduce dust intrusion (IP20 rated). Eight modules of different colors can be selected according to the needs of application. Comply with TIA-606 color management standard.

-Provide tool free crimping cover to prevent cable falling off and reduce poor contact caused by dust.

-The module has EIA color code stickers, which comply with two wiring methods of T568A and T568B.

-110 / Krone wiring tools are compatible with quick connect IDC terminal design, and support traditional 110 wiring tools and special 4-Pair wiring tools (FL-KM90T) quick installation mode 22 ~ 26AWG cable can be terminated.


Product characteristics

Shell plastic material: fire resistant ABS (in accordance with UL-94V-0)

Contact material: Copper tinned

Contact plating: 50 Gold Plated / 100 plate with nickel

Interface plugging times: > 1000

IDC wiring and termination times: > 200

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Contact pressure of plug and interface: 100 grams minimum for each contact

Operating temperature: - 40 to + 75

Insulation strength (conductor conductor): 1000VAC, 60Hz / 1min

Insulation impedance: > 500m ohms (500VDC)

Contact impedance: < 20m ohm

Rated voltage / current: 150vac / 1.5ampere


Meet the standards

TIA/EIA 568-B.2-1 Category 6

ANSI/TIA 568.2-D Category 6

ISO/IEC 11801 2nd Edition

EN 50173 2nd Edition

EN 55022 Class B


Can be used

10/100Base-T

1000Base-T

2.5G/5GBase-T

1.2/2.4Gbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDNVoIP

PoE++ Type 4


Order information

Order information.jpg


03 ⱨ.jpg


P2.06.09_Cat.6 Unshielded ModuleKeystone Jacks.pdf



P2.06.09_ģ.pdf
