FL-6AKS Cat.6A Shielded Module £¨Keystone Jack£©



Product advantage

- Cat.6A shielded module meets ANSI/TIA 568.2-D Cat.6A, ISO/IEDC 11801 2nd class EA standard. It supports 10G high speed Ethernet transmission applications with a transmission bandwidth of 500MHz.

- The jack body is formed by metal mold, providing 360¡ãshielding layer, which can achieve the best shielding effect.

- The module is equipped with a rotary dust cover to reduce dust intrusion up to IP20 dust intrusion level and reduce the failure rate of the module.

- The circuit board IDC terminal adopts the press in technology, which can effectively reduce the capacitance effect and suppress the crosstalk.

- The module has EIA color code sticker, which conforms to two wiring methods of T568A and T568B.

- It supports the quick installation mode of the traditional 110 threading tool and the special 4-Pair threading tool  (FL-KM18T).

- Comply with ROHS 2011/65/eu environmental protection standards.

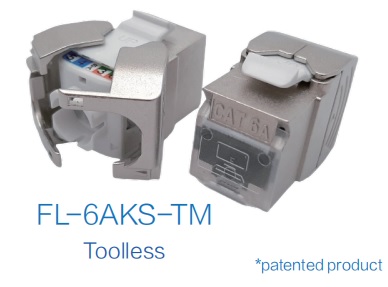

- *FL-6AKS-TM tool less Cat.6A shielded keystone jack makes installation easier and faster with more guaranteed performance.

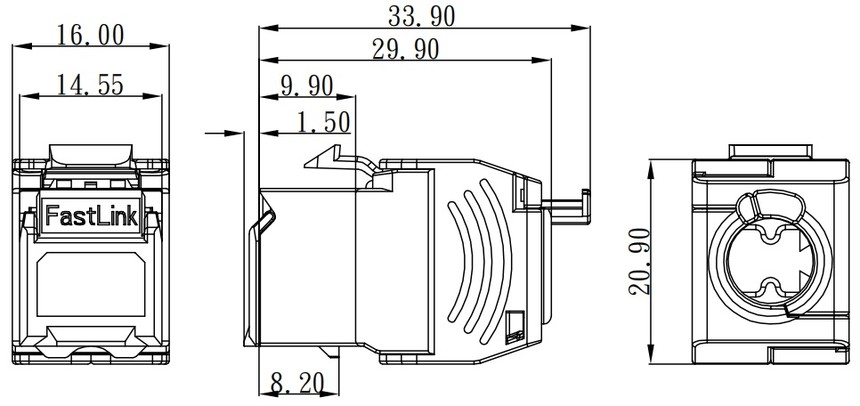

02.jpg        FL-6AKS-TM_02³ß´çV2.jpg


Product characteristics

Shell metal material: zinc alloy

Plastic material in shell: fire resistant ABS  (in accordance with UL-94V-0)

Contact material: copper tin plating

Contact plating: 50¦Ì Gold Plated /100¦Ì nickel plating

Interface plugging times: >1000

IDC wiring and termination times: >200

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Contact pressure of plug and interface: 100 grams minimum for each contact

Operating temperature: -40 ¡æ to +75 ¡æ

Insulation strength (conductor conductor):1000v, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <20M ohm

Rated voltage / current: 150VAC/1.5Ampere


Meet the standards

TIA/EIA 568-B.2-10 Category 6A

ANSI/TIA 568.2-D Category 6A

ISO/IEC 11801 2nd Edition Class EA

EN 55022 Class B

IEEE 802.3bt Type 4£¨IEC 60512-99-002£©


Can be used

10/100 Base-TX

1G/2.5G/5GBase-T

10GBase-T(10 Gigabit Ethernet)

155/622 Mbps ATM

1.2/2.4 Gbps ATM

TP-PMD

Token Ring

ISDN

VoIP

PoE++£¨Type 4£©

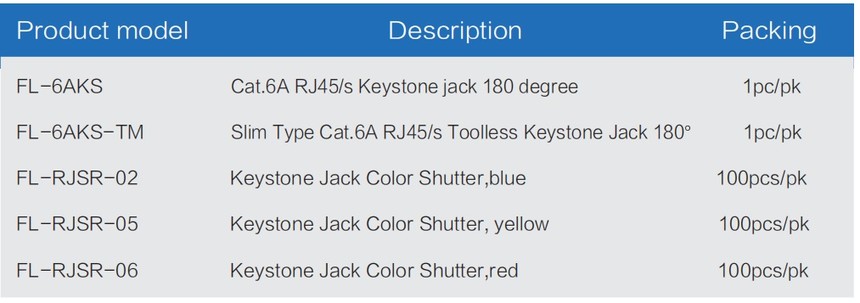

Order information

Order information.jpg

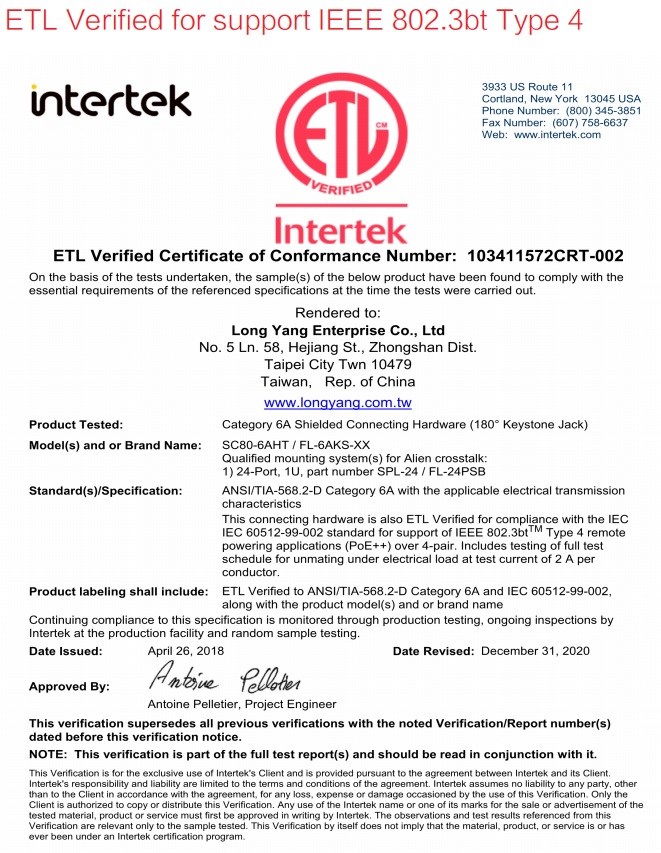

ETL Verified for support IEEE 802.3bt Type 4.jpg


P2.05.04_Cat.6A Shielded Module£¨Keystone Jack£©.pdf


P2.05.04_³¬ÁùÀàÆÁ±ÎÄ£¿é.pdf
