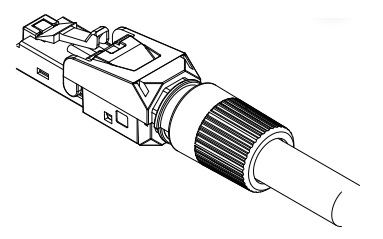

FL-RJ6AS-EA MPTL Cat.6A shielded field termination connector



Product advantage

- FastLinkcabsys connector meets ANSI/TIA 568.2-D Cat.6A, ISO/IEC 11801 2nd Amendment class EA and EN 50173 2nd Edition standards.

- The information plug body is formed with zinc alloy die casting, and the zinc alloy die back cover is provided, which has the best shielding effect and 360 all-round shielding protection.

- The wire free tool is designed to accommodate 22~26AWG solid wires and 22~27AWG stranded wires.

- The electrical characteristics of the information plug are provided by circuit board circuit design technology, which can effectively reduce capacitance effect and suppress crosstalk.

- The wiring gland is provided with EIA color code sticker, which conforms to the three wiring methods of T568A, T568B and Industrial.

- Support MPTL and E2E connections.

- Comply with EU ROHS 2011/65/eu environmental protection standards.


Product characteristics

Shell material: zinc alloy

Contact material: copper tin plating

Contact plating: 50 Gold Plated / 100 nickel plating

Interface plugging times: >750

IDC wiring and termination times: >5

Contact pressure of plug and interface: 100 grams minimum for each contact

Operating temperature: -40 to +75

Insulation strength (conductor conductor):1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <20M ohm

Rated voltage / current: 1.5Ampere


Meet the standards

TIA/EIA 568-B.2-10 Category 6A

ANSI/TIA 568.2-D Category 6A

ISO/IEC 11801 2nd Edition Class EA

EN 50173 2nd Edition

4PPoE compliant


Can be used

10GBase-TX

2.5G/5GBase-T

1000Base-T

10/100Base-TX

1.2/2.4Gbps ATM

TP-PMD

4/16Mbps Token Ring

MPTL and E2E links

VoIP

PoE++Type 4




Order information

Order information.jpg


P2.05.08_MPTL Cat.6A shielded field termination connector.pdf


P2.05.08_MPTLֳ˽ӽͷ.pdf
