Cat.5E cabling solutions



Product overview

Fastlinkcabsys Cat.5E Cabling System is an enhanced network cabling solution with high stability and reliable transmission performance. It meets the transmission requirements of network rate below 1Gbps. It is suitable for the application environment of commercial office network data, telephone voice, digital monitoring, etc., and also supports the application of industrial Ethernet.

The system meets IEEE802.3af standard and supports PoE within 15W. The product has two schemes of shielding and unshielded, and a variety of colors are available to meet the lassification needs of customers in different environments and subsystems. The whole series of products comply with 2011/65/EU (RoHS 2.0) environmental protection standards.


Product characteristics

Advanced twisting process is adopted to provide the highest stability scheme for Cat.5E.

ANSI/TIA 568.2-D Cat.5E, ISO/IEC 11801 2nd Class D standard, with transmission bandwidth up to 155mhz.

Cat.5e cables and unshielded connecting elements passed the ETL monomer test.


Can be used

10/100Base-TX

1000Base-T(Gigabit Ethernet)

155/622 Mbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN

VoIP(Voice)

PoE(PD electric equipment within 15W)

100M Industry Ethernet


Meet the standards

ANSI/TIA 568.2-D Category 5E

ANSI/TIA 1005 Cat5E

ISO/IEC 11801 2nd Edition Class D

ISO/IEC 60332-1-2

ISO/IEC 60754-2、IEC 61034-1、IEC 61034

EN 50173 2nd Edition Class D

EN 50288-6-2:2003

EN 55022 Class B

IEEE 802.11a/b/g/n

IEEE 802.3bz(NBASE-T)

IEEE 802.3af(PoE)

GB 50311-2016 Cat5e

GB/T 50312-2016 Cat5e

GB/T 21671-2008 Cat5e

GB 50314-2015 Cat5e

WTB,MVB,ProfiBus

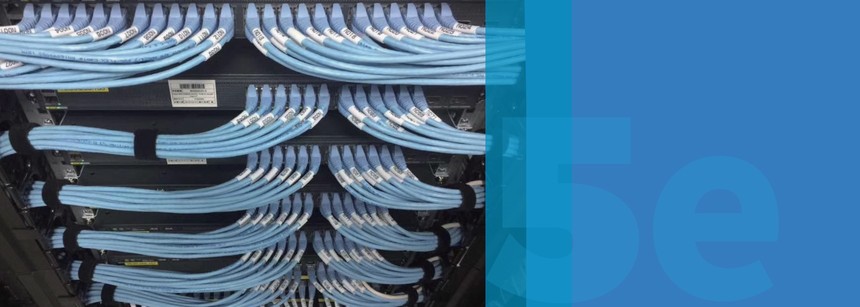

00 Cat5e.jpg
