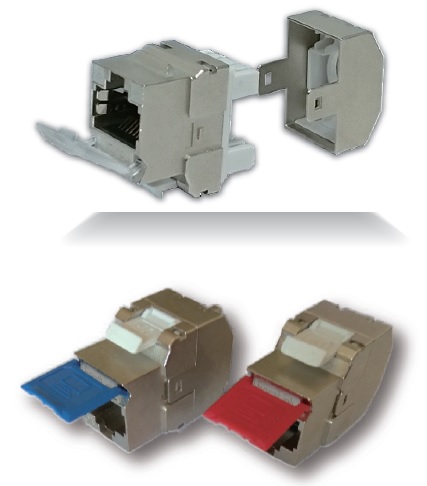

FL-62KS Cat.6 Shielded ModuleKeystone Jack

00 ģͼ.jpg


Product advantage

- Class VI shielded module meets ANSI/TIA 568.2-D Cat.6 ISO/IEC 11801 2nd class E and EN50173 2nd edition standard; The transmission bandwidth is more than 250MHz.

- The module body is formed by metal mold, providing 360shielding layer, which can achieve the best shielding effect.

- The module is equipped with a rotary dust cover to reduce dust intrusion (IP20 rated) and reduce the failure rate of the module.

- The circuit board IDC terminal adopts the press in technology, which can effectively reduce the capacitance effect and suppress the crosstalk.

- The module has EIA color code sticker, which conforms to two wiring methods of T568A and T568B.

- It supports the quick installation mode of the traditional 110 threading tool and the special 4-Pair threading tool (FL-KM18T).

- Comply with ROHS 2011/65/eu environmental protection standards.

- *FL-62KS-TM tool less Cat.6 shielded keystone jack makes installation easier and faster with more guaranteed performance.


02.jpg        FL-62KS-TM_02ߴV2.jpg


Product characteristics

Shell metal material: zinc alloy

Plastic material in shell: fire resistant ABS  (in accordance with UL-94V-0)

Contact material: copper tin plating

Contact plating: 50 Gold Plated / 100 plate with nickel

Interface plugging times: >1000 (IEC 603.7/classa)

IDC wiring and termination times: >200

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Contact pressure of plug and interface: 100 grams minimum for each contact

Operating temperature: -40 to +75

Insulation strength (conductor conductor):1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <20M ohm

Rated voltage / current: 150VAC/1.5Ampere


Meet the standards

TIA/EIA 568-B.2-1 Category 6

ANSI/TIA 568.2-D Category 6

ISO/IEC 11801 2nd Edition

EN 50173 2nd Edition

EN 55022 Class B


Can be used

10/100Base-T

1000Base-T

2.5G/5GBase-T

1.2/2.4Gbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDNVoIP

PoE++ Type 4

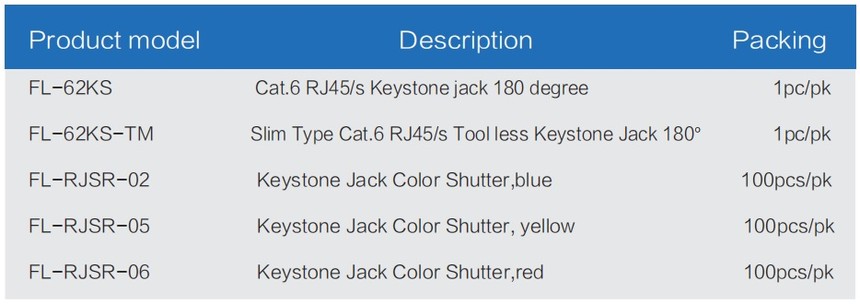

Order information


04 PoE++֤.jpg


P2.06.08_Cat.6 Shielded ModuleKeystone Jack.pdf


P2.06.08_ģ.pdf
