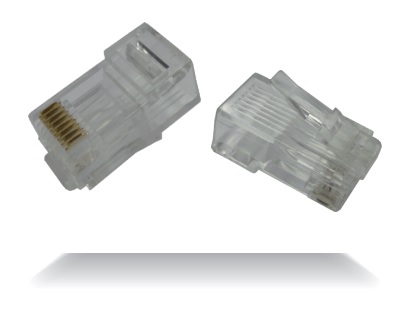

FL-RJ5EU Cat.5E RJ45 Unshielded Plug

01 水晶头盒.jpg       超五类水晶头02.jpg


Product advantage

- ANSI/TIA 568.2-D, TIA/EIA 568-B.2 Cat.5E standard.

- Repeatedly plug and unplug more than 1000 times.

- Compatible with international standard crimping tools.

- Gold plating of contact surface shall comply with ul/csa FCC part 68 standard.

- Comply with ROHS 2011/65/eu environmental protection standards.


Product characteristics

Cable insulation material conforms to UL-94V-0

Contact plating: 50μ Gold plated +100μ nickel plating

Surface material voltage withstand strength: 1000V DC

Applicable temperature -20 ℃ ~+75 ℃

Plug and pull resistance: minimum 11lbf (133n)

Interface plugging times: >1000

Insulation strength (conductor conductor):1000vac, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <35M ohm

Rated voltage / current: 150VAC/1.5Ampere


Meet the standards

TIA/EIA 568-B.2 Category 5E

ANSI/TIA 568.2-D Category 5E

ISO/IEC 11801 2nd Edition


Can be used

10/100Base-TX

1000Base-T

2.5GBase-T

TP-PMD(ANSI X3T9.5 100Mbps)

ISDN

VoIP

PoE

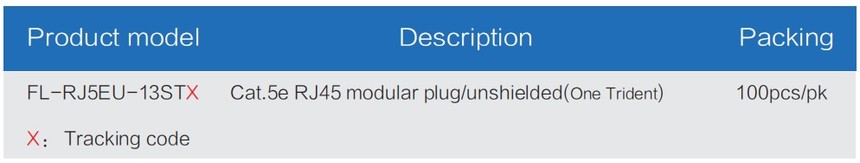

Order information

Order information.jpg

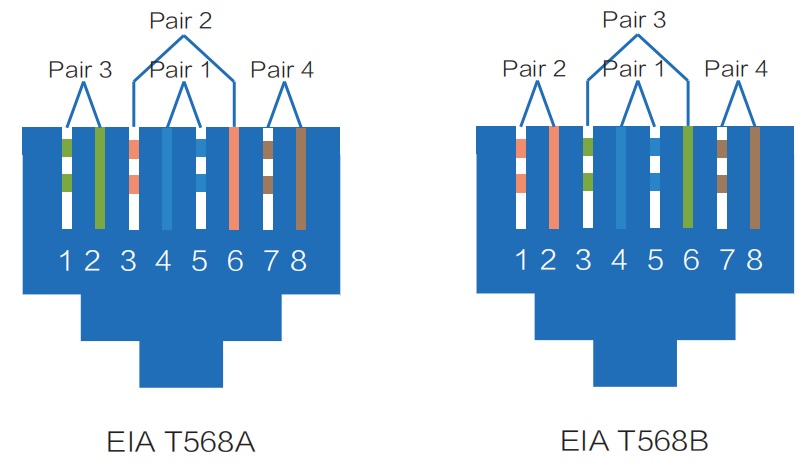

EIA Standard wiring mode

EIA Standard wiring mode.jpg



P2.07.10_Cat.5E RJ45 Unshielded Plug.pdf


P2.07.10_超五类RJ45水晶头.pdf
