FL-6ASH, FL-6ASL Cat.6A Shield Patch Cord, S/FTP, 26AWG




Product advantage

- Comply with ANSI/TIA 568.2-D, TIA/EIA 568-B.2-10 Cat.6A and ISO/IEC 11801 2nd class EA, with a transmission bandwidth of 500MHz.

- Use Cat.6A double-layer shielded S/FTP 26AWG stranded copper wire; Two terminal crimping shielded standard RJ45 connector.

- The outer coating material is PVC or LSOH low smoke halogen-free type.

- It supports 10GBase-T applications and is downward compatible with any class E (Cat.6) and class D (Cat.5E) system wiring.

- Comply with ROHS 2011/65/eu environmental protection standards.




Product characteristics

RJ45 connector conforms to ul/csa FCC part 68, sub part f

Cable insulation material conforms to UL-94V-0

Contact plating: 50 ¦Ì Gold Plated / 100 ¦Ì nickel plating

Interface plugging times: >1000 (IEC 603.7/classa)

Plug and pull resistance: minimum 11lbf (50N)

Maximum DC resistance: <9.38 ¦¸ /100m at 20 ¡æ

Mutual capacitance: <5.6nf/100m

Applicable temperature: -20 ¡æ to +75 ¡æ

Insulation strength (conductor conductor):1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <35M ohm

Rated voltage / current: 150VAC/1.5Ampere

Inner conductor wire gauge: stranded copper (26AWG)

Cable sheath material: PVC or LSOH: low smoke and halogen-free

conforming to IEC 60332-1-2


Meet the standards

TIA/EIA 568-B.2-10 Category 6A

ANSI/TIA 568.2-D Category 6A

ISO/IEC 11801 2nd Edition Class EA

EN 50173 2nd Edition

EN 55022 Class B


Can be used

10/100Base-TX

1000Base-T

2.5G/5GBase-T

10GBase-T

155/622Mbps ATM

1.2/2.4Gbps ATM

TP-PMD

4/16Mbps Token Ring

ISDN

VoIP

4PPoE compliant

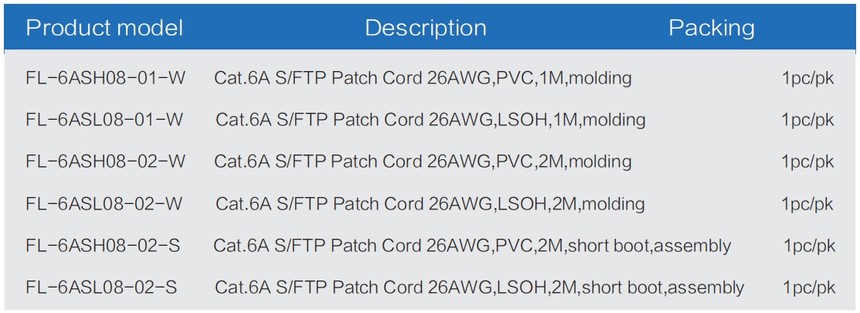

Order information

Order information.jpg


P2.05.05_Cat.6A Shielded Patch Cord, S-FTP, 26AWG.pdf


P2.05.05_³¬ÁùÀàÆÁ±ÎÌøÏß S-FTP,26AWG.pdf
