FL-6A8HH, FL-6A8HL Cat.6A Shielded slight Patch Cord, U/FTP, 28AWG


Product advantage

-Comply with ANSI/TIA 568.2-D, TIA/EIA 568-B.2-10 Cat.6A and ISO/IEC 11801 2nd Class EA standard, transmission bandwidth up to 500MHz.

-Use Cat.6A shielded U/FTP 28AWG stranded copper wire; Two terminal crimping shielded standard RJ45 connector.

-The outer coating material is PVC or LSOH low smoke halogen-free type.

-It supports 10GBase-T applications and is downward compatible with any class E (cat.6) and class D (cat.5e) system wiring.

-Comply with ROHS 2011/65/eu environmental protection standards.


02.jpg    03.jpg


Product characteristics

RJ45 connector conforms to UL/CSA FCC part 68, sub part F

Cable insulation material conforms to UL-94V-0

Contact plating: 50¦Ì Gold Plated / 100¦Ì plate with nickel

Interface plugging times: >1000 (IEC 603.7/classa)

Plug and pull resistance: minimum 11lbf (50N)

Maximum DC resistance: <22.3 ¦¸ /100m (28Awg) at 20 ¡æ

Mutual capacitance: <5.6nf/100m

Applicable temperature: -20 ¡æ to +75 ¡æ

Insulation strength (conductor conductor): 1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <35M ohms

Rated voltage / current: 150VAC/1.5Ampere

Cable outer diameter: 5.3+/-0.2mm (28AWG)

Cable sheath material: PVC or LSOH: low smoke and halogen-free conforming to IEC 60332-1-2


Meet the standards

TIA/EIA 568-B.2-10 Category 6A

ANSI/TIA 568.2-D Category 6A

ISO/IEC 11801 2nd Edition Class EA

EN 50173 2nd Edition

EN 55022 Class B


Can be used

10/100Base-TX

1000Base-T

2.5G/5GBase-T

10GBase-T

155/622Mbps ATM

1.2/2.4Gbps ATM

TP-PMD

4/16Mbps Token Ring

ISDN

VoIP

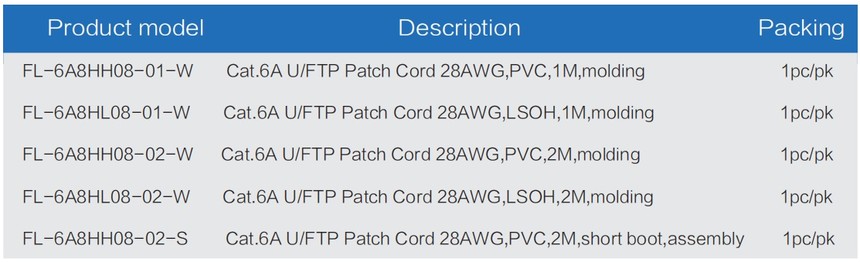

Order information

03 Order information.jpg


Transmission Characteristics

04 ²ÎÊý.jpg


P2.05.06_Cat.6A Shielded slight Patch Cord, U-FTP, 28AWG.pdf


P2.05.06_³¬ÁùÀàÆÁ±ÎÏ¸ÌøÏß U-FTP,28AWG.pdf
