FL-ERHFL-ERL Cat.5e Shielded Patch Cord, SF/UTP,26AWG


Product advantage

- Comply with TIA/EIA 568-B.2-1, ANSI/TIA 568.2-D Cat.5e and ISO/IEC 11801 2nd class D.

- Cat.5e multi strand copper stranded Patch Cord, transmission bandwidth up to 100MHz.

- Cat.5e shielded SF/UTP 26AWG stranded copper wire is adopted; two terminal crimping shielded standard RJ45 connector.

- The outer skin is made of standard fire-resistant material and can be PVC or LSOH low smoke halogen-free.

- It adopts rubber filled protective sleeve and has RJ45 shrapnel protection design.

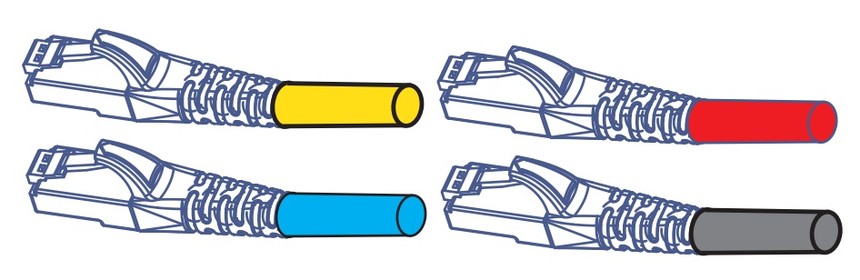

- It can provide jumpers of eight colors, meeting TIA-606 color management standard.

- Comply with ROHS 2011/65/EU environmental protection standards.


Product characteristics

RJ45 connector conforms to UL/CSA FCC part 68, sub part F

Cable insulation material conforms to UL-94V-0

Contact plating: 50 Gold Plated / 100 plate with nickel

Interface plugging times: >1000

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Maximum DC resistance: <9.38 /100m at 20

Mutual capacitance: <5.6nf/100m

Applicable temperature: -20 to +75

Insulation strength (conductor conductor):1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <35M ohm

Rated voltage / current: 150VAC/1.5Ampere

Inner conductor wire gauge: 26awg stranded copper

Cable sheath material: PVC or LSOH in accordance with IEC 60332-1-2

Meet the standards

ANSI/TIA 568.2-D Category 5E

ISO/IEC 11801 2nd Edition

EN50173 2nd Edition


EN55022 Class B

IEC 60332-1-2

Can be used



155/622 Mbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring




Order information

Order information.jpg

Cat.5e Shielded Patch Cord,SF-UTP,26AWG.pdf
