FL-51CFI, FL-52CFI Cat.5E Shielded Twisted Pair Cable, F/UTP, 24AWG

01 超五类屏蔽线缆01.jpg          02 超五类屏蔽线缆结构.jpg


Product advantage

- The advanced twisted winding process is adopted to provide the highest stability scheme of Cat.5E shielded generic cabling system.

- Comply with international safety regulations and ANSI/TIA 568.2-D Cat.5E. ISO/IEC 11801 2nd Class D characteristic standard.

- The cable adopts F/UTP structure, and four pairs of twisted pairs are coated with a layer of aluminum foil Mylar tape, which can effectively reduce the generation of external crosstalk, and the transmission bandwidth reaches 100MHz.

- Compatible with FastLinkcabsys full series copper cable connectors.

- The outer skin is made of standard fire-resistant material PVC or low smoke and halogen-free material LSOH.

- Comply with RoHS 2011/65/EU environmental protection standards.


Product characteristics

Non-Plenum Fire rating: IEC60332-1 flame rated PVC or LSOH

Conductor wire gauge: bare copper wire, 0.50mm+0/-0.02mm (24awg)

Skin material: PVC or LSOH

Insulation material: HDPE

Shielding material: 4 pairs of aluminum foil Mylar tape

Cable diameter: 6.0+/-0.3mm

Rated transmission speed (NVP): 65%

Operating temperature: -20 ℃ to +75 ℃


Meet the standards

TIA/EIA 568-B.2 Category 5E

ANSI/TIA 568.2-D Category 5E

ISO/IEC 11801 2nd Edition Class D

EN50173 2nd Edition

EN50288-2-1

EN55022 Class B

IEC 60332-1-2

IEC 60754-2、IEC 61034-1、IEC 61034-2(LSOH)


Can be used

10/100Base-T

1000Base-T

155/622 Mbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN

VoIP

PoE

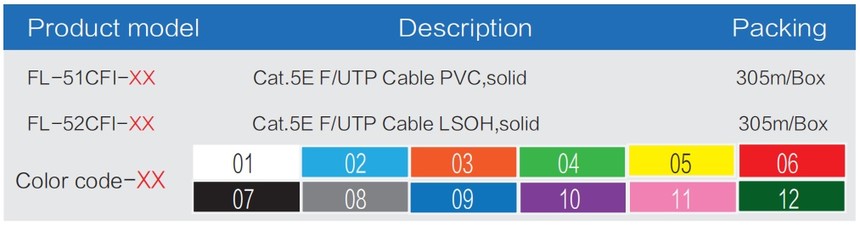

Order information

Order information.jpg


Transmission performance (Typical value@ 20℃)

04 超五类屏蔽线缆传输特性.jpg


P2.07.03_Cat.5E Shielded Twisted Pair Cable, F-UTP,24AWG.pdf


P2.07.03_超五类屏蔽双绞线 F-UTP,24AWG.pdf
