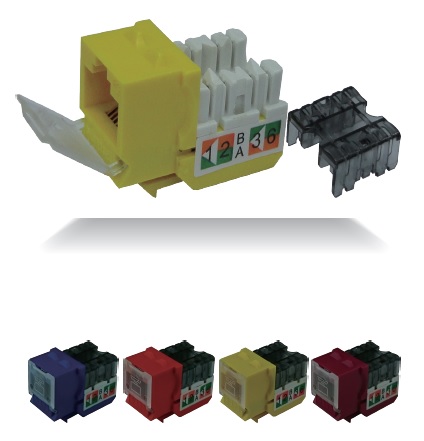

FL-51KU, FL-52KU Cat.5E Unshielded Module£¨Keystone Jack£©

00 ³¬ÎåÀà·ÇÆÁ±ÎÄ£¿é1.jpg


Product advantage

- Cat.5E unshielded module meets ANSI/TIA 568.2-D Cat.5E, ISO/IEC 11801 2nd Class D and EN50173 2nd Edition standards and passed ETL unit testing certification.

- The module is equipped with a rotary dust cover to reduce dust intrusion (IP20 rated). Modules of eight different colors can be selected according to the application requirements, which conforms to TIA- 606 color management standard.

- The circuit board IDC terminal adopts the press in technology, which can effectively reduce the capacitance effect and suppress the crosstalk.

- Provide a tool free crimping cover to prevent the cable from falling off and reduce the poor contact caused by dust.

- The module has EIA color code sticker, which conforms to two wiring methods of T568A and T568B.

- 110/krone wiring tools are compatible with quick connect IDC terminal design, supporting traditional 110 wiring tools and special 4-Pair wiring tools(FL-KM90T/FL-KM18T) quick installation mode. 22~26awg cable can be terminated.

- Comply with RoHS 2011/65/EU environmental protection standards.


Product characteristics

Shell plastic material: fire resistant ABS (in accordance with UL-94V-0)

Contact material: copper tin plating

Contact plating: 50¦Ì Gold Plated / 100¦Ì plate with nickel

Interface plugging times: >1000

IDC wiring and termination times: >200

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Contact pressure of plug and interface: 100 grams minimum for each contact

Operating temperature: -40 ¡æ to +75 ¡æ

Insulation strength (conductor conductor):1000VAC, 60Hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <20M ohms

Rated voltage / current: 150VAC/1.5Ampere


Meet the standards

TIA/EIA 568-B.2 Category 5E

ANSI/TIA 568.2-D Category 5E

ISO/IEC 11801 2nd Edition

EN 50173 2nd Edition

EN 55022 Class B


Can be used

10/100Base-TX

1000Base-T

155/622 Mbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN

VoIP

PoE


Meet the standards

TIA/EIA 568-B.2 Category 5E

ANSI/TIA 568.2-D Category 5E

ISO/IEC 11801 2nd Edition

EN 50173 2nd Edition

EN 55022 Class B


Order information

Order information.jpg


P2.07.06_Cat.5E Unshielded Module£¨Keystone Jack£©.pdf


P2.07.06_³¬ÎåÀà·ÇÆÁ±ÎÄ£¿é.pdf
