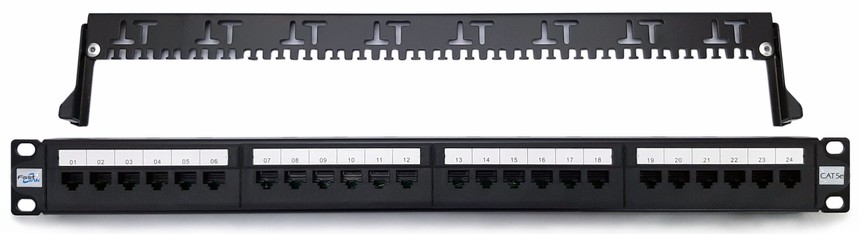

FL-P51UM Cat.5E Unshielded Modular Patch Panel





Product advantage

- The six connected circuit design is adopted, and the IDC terminal block is one-piece plastic injection molding; the overall structure circuit board is not exposed.

- Features beyond ANSI/TIA 568.2-D Cat.5E, ISO/IEC 11801 2nd Class D and EN50173 2nd edition standard.

- The back of the panel of the distribution frame can be equipped with a cable tray; guide incoming line and support cable weight to ensure high-speed transmission application quality.

- Transparent acrylic sign window, with an effective sign height of more than 9mm, is applicable to most professional label tape sizes.

- 110/krone wiring tool is compatible with quick connect IDC terminal design, and can terminate 22~26AWG cables.

- The connection module group is provided with EIA color code stickers, which provide two wiring methods: T568A and T568B.

- Through ETL Cat.5E performance test certification.


Product characteristics

Shell plastic material: ABS (according to UL-94V-0)

Contact material: copper tin plating

Contact plating: 50μ Gold Plated / 100μ plate with nickel

Interface plugging times: >1000

IDC wiring and termination times: >200

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Contact pressure of plug and interface: 100 grams minimum for each contact

Operating temperature: -10 ℃ to +60 ℃

Insulation strength (conductor conductor):1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <20M ohms

Rated voltage / current: 150VAC/1.5Ampere


Meet the standards

TIA/EIA 568-B.2 Catefory 5E

ANSI/TIA 568.2-D Category 5E

ISO/IEC 11801 2nd Edition

EN 50173 2nd Edition

EN 55022 Class B


Can be used

10/100Base-TX

1000Base-T

2.5GBase-T

155/622Mbps ATM

TP-PMD

4/16Mbps Token Ring

ISDN
