FL-67BUI-07 Outdoor Cat.6 Unshielded Twisted Pair Cable, U/UTP, 23AWG

01 六类室外电缆FL-67BUI.jpg        02 室外六类电缆结构图.jpg


Product advantage

- It adopts advanced stranding process and conforms to ANSI/TIA 568.2-D Cat.6, ISO/IEC 11801 2nd class E characteristic standard.

- The cable center adopts a cross isolation structure design to prevent pair deformation and effectively reduce crosstalk. The transmission bandwidth can reach up to 250MHz.

- Compatible with fastlinkcabsys full series copper cable connectors.

- The outer skin is made of PE, and black can effectively resist the penetration of ultraviolet rays to cause the outer skin embrittlement; Suitable for outdoor environment.

- Comply with RoHS 2011/65/EU environmental protection standards.


Product characteristics

Conductor wire gauge: bare copper wire, 0.57 ± 0.02 mm (23AWG)

Skin material: polyythylene

Insulation material: HDPE

Cable outer diameter: 6.20 ± 0.30mm

Rated transmission speed (NVP): 65%

Bending radius: 4xod without load

Maximum tensile force: 11.34kg(25lbf)

Operating temperature: -20 ℃ to +75 ℃


Meet the standards

TIA/EIA 568 B.2-1 Category 6

ANSI/TIA 568.2-D Category 6

ISO/IEC 11801 2nd Edition Class E

EN 50173 2nd Edition

EN 50288-6-1

EN 55022 Class B


Can be used

10/100Base-T

1000Base-T

2.5G/5GBase-T

1.2/2.4 Gbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN、VoIP

PoE+ compliant

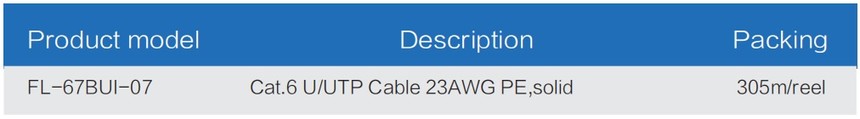

Order information

Order information.jpg


Transmission performance (Typical value@ 20℃)

04 技术参数.jpg


P2.06.15_Outdoor Cat.6 Unshielded Twisted Pair Cable,U-UTP,23AWG.pdf


P2.06.15_室外六类非屏蔽双绞线 U-UTP,23AWG.pdf
