Product advantage

- Comply with TIA-568 transmission standard.

- It is used to quickly connect 110 distribution frame, simplify management and improve flexibility.

- Conductor wire gauge: multi strand copper core (1/2*7*26awg) / single core copper wire (1*2*0.4mm).

- Flame retardant PVC and LSOH low smoke halogen-free materials can be selected for the skin.

- The whole series of products comply with ROHS 2011/65/EU environmental protection standards.

- Different lengths or joints can be customized as required.

Product characteristics

Contact plating: 100μ Nickel plating +50μ gold-plated

Plugging times: >200

Characteristic impedance: 100±15Ω

DC impedance: <9.38Ω /100m @ 20 ℃

Mutual capacitance: <5.6nf/100m

Operating temperature: -20 ℃ ~ +75 ℃

Insulation strength: 1000VAC, 60Hz/1min (conductor)

Insulation impedance: >500MΩ (500VDC)

Contact impedance: <35 MΩ

Rated voltage / current: 250VAC/1.5A

Meet the standards

TIA/EIA 568-B.2-1

ISO/IEC 11801 2nd Edition

EN50173 2nd Edition

EN55022 Class B

Can be used

ATM

TP-PMD

Token Ring

ISDN

ADSL

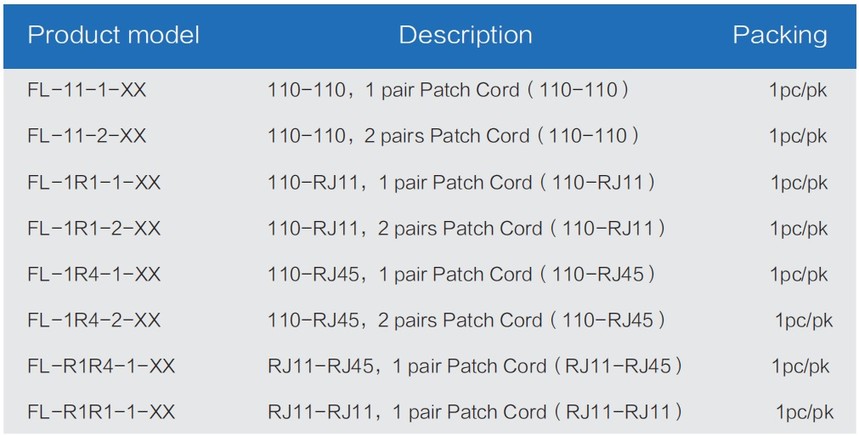

Order information
