Cat.6A Pre terminated Copper Trunk Cable



Product advantage

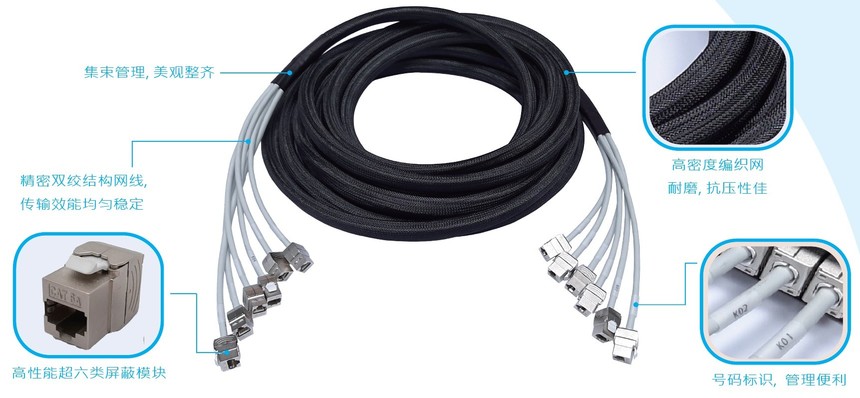

- The six links of the pre terminated copper trunk are a combination, using the original high-performance Cat.6A shielded module and U/FTP cable with advanced stranding process, conform to ANSI/TIA 568.2-D Cat.6A, ISO/IEC 2nd class EA characteristic standard.

- The cable has four pairs of twisted wires, and each pair of wires is covered with aluminum foil Mylar tape, which effectively reduces the generation of crosstalk between pairs and external crosstalk; Transmission bandwidth reache 500MHz

- The outer coating material of the cable is LSZH low smoke halogen-free type.

- Factory pre terminated, cable bundle management, and wrapped with high-density woven mesh, beautiful and tidy, and increased the wear resistance and compression resistance of the cable.

- One end (or both ends) of the pre terminated copper cable trunk is equipped with stay rings to facilitate and protect the trunk copper cable from routing between cabinets, reduce installation risks, and reduce the waste of installation site is reduced, and it can even be redeployed in the same place, which is more green and environmental friendly.

- The six links of the pre terminated copper trunk have passed 100% of the original factory test, with full certification and performance guarantee.

- There are obvious serial number marks on the cables, which are arranged in order and plug and play on site.

- Faster "field operation" time, about 8 times faster than conventional cabling.

- Comply with ROHS 2011/65/EU environmental protection standards.



Product characteristics

Non plenum fire rating: LSZH

Conductor wire gauge: 0.565mm (23AWG) Insulation material: Foam PE, 1.38 0.05mm

Twisting mode: 4 pairs of cables, 2-core pairs

Shielding layer: aluminum foil Mylar tape for each pair Skin material: LSOH

Cable outer diameter: 6.9 + / - 0.3mm

Rated transmission speed (NVP):78%

Plugging times: >750

Tension: >100 grams

Insulation resistance: 500M HM minimum @100VDC

Gold needle contact resistance: 20MHM max

IDC contact resistance: 2.5MHM max

Withstand voltage: 1000 VAC RMS @60hz/1min

Rated current: <1.5Amps

Working temperature: -20 to +75


Meet the standards

ANSI/TIA 568.2-D Category 6A

ISO/IEC 11801(IEC 61156-5)Category 6A

EN55022 Class B IEC 60332-1-2

IEC 60754-2IEC 61034-1IEC 61034-2



Can be used

10/100Base-TX

1000Base-T

2.5G/5GBase-T

10G Base-T(10Gigabit Ethernet)

1.2/2.4 Gbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring ISDN

PoE++



Order information

Order information.jpg


Transmission performance

Transmission performance.jpg
