Pre terminated Array cord



Product advantage

- Fastlinkcabsys MPO Array patch cord provides OM3, OM4 laser optimized flexible multimode and OS2 zero water peak application selection of flexible single mode; comply with ANSI/TIA 568.3-D and ISO/IEC 11801 standards.

- MPO low loss optical fiber connector is adopted, and the link channel has excellent attenuation allowance, so that when you design the cabling system, it has the best design flexibility.

- Multi mode MPO connector is physical contact polish (PC) interface; Single mode MPO connector is angled Physical contact polish (APC) green low loss interface.

- The array patch cord is suitable for providing equipment to equipment, equipment to fiber patch panel  (storage box) or fiber patch panel (storage box) - the application of patching between fiber patch panel  (storage box).

- Verify the optical performance and reliability in the factory to ensure the quality of jumpers.

- Meet ANSI/TIA 568.3-D fiber polarity requirements, and provide type-A, Type-B and type-C.

   (the default type of fastlinkcabsys prefabricated optical fiber cabling system is type-B).

- Support 10G, 40G and 100Gbps sequence or parallel transmission application architecture.

- The color coding of optical fiber and cable shall comply with ANSI/TIA-598-C standard.

- Indoor optical fiber is designed and manufactured according to TIA 472C000-B/ICEA S-83-596-2001 standard.

- MPO connector complies with IEC 61754-7 standard.

- Comply with ROHS 2011/65/EU environmental protection standards.




Product characteristics

Unit: 12 cores

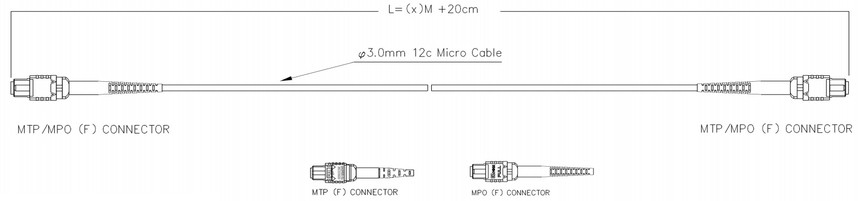

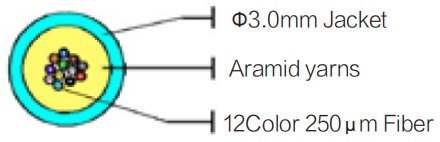

12 core optical cable diameter: 3.0mm

Weight of optical cable: 19~27kg/km (12 ~ 24C)

Bending radius (IEC 60794-1-2-E11):

    30 x optical cable diameter (during installation)

    15 x optical cable diameter (during operation)

Tensile strength (IEC 60794-1-2-E1):

     200N (during operation)

     334N (during installation)

Impact force (IEC 60794-1-2-E4): 0.74N-m

Torque (IEC 60794-1-2-E7): 10 cycles

Flame retardant low smoke halogen-free (LSOH):

     IEC 60332-1-2IEC 60754-2

     IEC 61034-1IEC 61034-2

Applicable temperature (IEC 60794-1-2-F1):

     -20 ~ +75 (in stock)

     -10~ +65 (during operation)

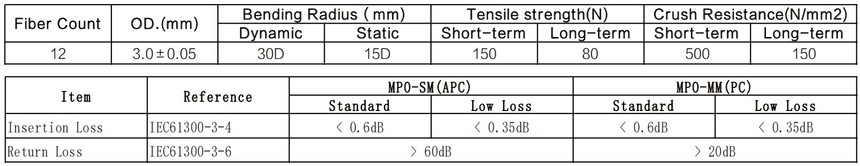

Optical properties of products

    Change of insertion loss after plugging: 0.35 dB

    Change of temperature to insertion loss: 0.35 dB


Technical parameter
