Pre terminated Fanout cord


Product advantage

- Fastlinkcabsys Fanout fiber patch cord provide application options for OM3, OM4 laser optimized flexible multimode and OS2 zero water peak flexible single mode; comply with ANSI/TIA 568.3-D and ISO/IEC 11801 2nd amendment standards.

- MPO low loss optical fiber connector is adopted, and the link channel has good attenuation allowance, so that you have the best flexibility when designing the cabling system.

- Multi mode MPO connector is physical contact polish (PC) interface; the single-mode MPO connector is an angled physical contact polish (APC) green low loss interface.

- The standard branch length is 60 ± 3cm.

- Inspect the optical performance and reliability when leaving the factory to ensure the quality of the link.

- Support fan out or fan in termination architecture.

- MPO connector conforms to IEC 61754-7 standard, LC connector conforms to TIA/EIA-604-10 standard.

- Comply with ROHS 2011/65/EU environmental protection standards.


Product characteristics

Unit: 12 cores

12 core optical cable diameter: 3.0mm

Weight of optical cable: 19~27kg/km (12 ~ 24C)

Bending radius (IEC 60794-1-2-E11):

      30 x optical cable diameter (during installation)

      15 x optical cable diameter (during operation)

Tensile strength (IEC 60794-1-2-E1):

     200N (during operation)

     334N (during installation)

Impact force (IEC 60794-1-2-E4): 0.74N-m

Torque (IEC 60794-1-2-E7): 10 cycles

Flame retardant low smoke halogen-free (LSOH):

     IEC 60332-1-2、IEC 60754-2

     IEC 61034-1、IEC 61034-2

Applicable temperature (IEC 60794-1-2-f1):

     -40 ~ +70 ℃ (in stock)

     -40 ~ +70 ℃ (during operation)

Maximum insertion loss value: ≤ 0.60 dB

     Change of insertion loss after plugging: ≤ 0.35 dB

     Change of temperature to insertion loss: ≤ 0.35 dB

Technical parameter

Technical parameter.jpg

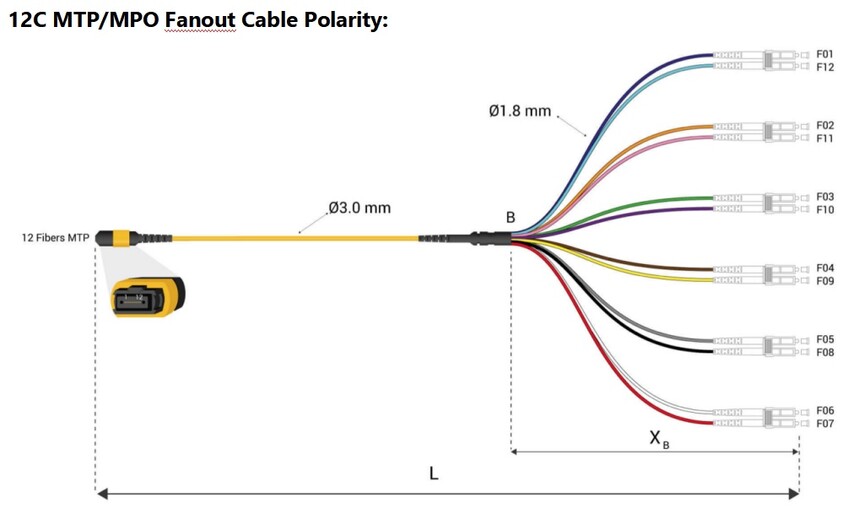

The following is the line sequence logic diagram at LC Simplex Clip of 8C and 12C fanout patch cord for reference:

(The factory default is LC Simplex Clip, and the following figure is the logic LC duplex line sequence pairing diagram)

Type B 8C扇形光纤跳线线对图.jpg

Type B 12C扇形光纤跳线线对图.jpg

P4.03.13_Pre terminated Fanout cord.pdf
