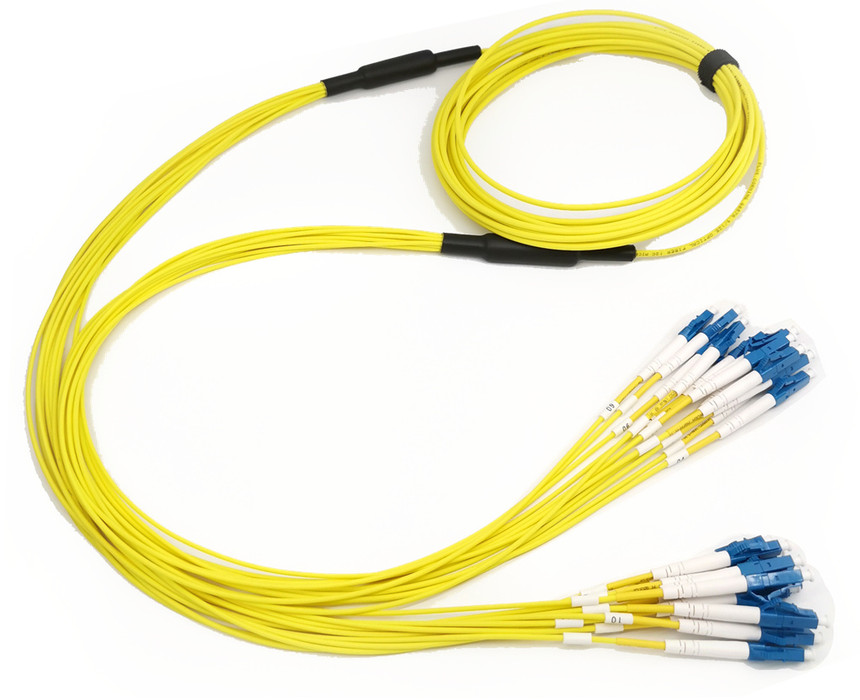

Pre terminated Distribution cable



Product advantage

- Fastlinkcabsys prefabricated branch optical fiber provides OM3, OM4 multimode and OS2 zero water peak single mode for selection.

- Comply with ANSI/TIA 568.3-D and ISO/IEC 11801 2nd amendment standards.

- ST, SC, FC and LC connectors are available for use.

- The standard branch length was 60±3cm.

- Verify the optical performance and reliability at the factory to ensure the link quality.

- Connectors comply with TIA/EIA-604-2 (ST), TIA/EIA-604-3 (SC), TIA/EIA-604-4 (FC) and TIA/EIA-604-10 (LC) standard.

- The color coding of optical fiber and cable shall be in accordance with ANSI/TIA-598-C standard.

- Indoor optical fiber cable is designed and manufactured according to TIA 472C000-B/ICEA S-83-596-2001 standard.

- Comply with RoHS 2011/65/EU environmental protection standards.



12C V2.jpg

Product characteristics

Unit: 12 cores

12 core optical cable diameter: 3.0mm

Optical cable weight: 19 ~ 27kg / km (12 ~ 24C)

Bending radius (IEC 60794-1-2-E11):

   30 x cable diameter (when installed)

   15 x cable diameter (when used)

Tensile strength (IEC 60794-1-2-E1):

   200N (during operation)

   334N (during installation)

Impact force (IEC 60794-1-2-E4): 0.74N-m

Torque (IEC 60794-1-2-E7): 10 cycles

Flame retardant low smoke zero halogen (LSOH):

   IEC 60332-1-2、IEC 60754-2

   IEC 61034-1、IEC 61034-2

Applicable temperature (IEC 60794-1-2-F1):

   -20 ~ + 75 ℃ (in stock)

   -10 ~ + 65 ℃ (when used)

Change of insertion loss after plugging: ≤ 0.30 dB

Change of temperature to insertion loss: ≤ 0.30 dB


Technical parameter



distribution cord,分支跳线.jpg



P4.03.15_Pre terminated Distribution cable.pdf


P4.03.15_预制分支光缆.pdf
