FL-48HDPH6 / FL-48HDPUB 48 Ports high density unshielded horizontal Patch Panel







Product advantage

    - 48 Ports unshielded snap in patch Panel adopts 19 "1U rack type design, and the frame adopts 1.5mm thick plate SPCC cold-rolled steel plate is treated with baking paint and rust prevention.

    - The empty patch panel is compatible with the installation of the non shielded module. (* Note: the transparent external lift type dust door of the module can be installed only after it is removed)

    - Since 48 jacks need to be accommodated in 1U, the density is very high, and there is almost no extra space, it is difficult to install and maintain, so it is not recommended.

    - Compatible with Fastlink unshielded 180 degree information module.

    - The back of the patch panel contains a modular support bar to guide incoming wires.

    - The corresponding port of the distribution panel is printed with the port number for easy identification.

    - Comply with ROHS 2011 / 65 / EU environmental protection standards.


Product characteristics

    Metal material of frame and support: SPCC cold rolled steel, 1.5mm

    Standard color: Black

    Working temperature: - 40 to + 75


Meet the standards

    EIA-310-D


Order information

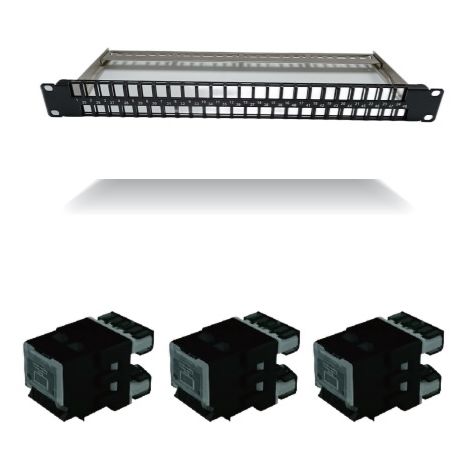

Fl-48HDPH6 is the model of 1U 48 Ports patch panel with jacks (including: FL-48HDPUB 48 Ports empty patch panel * 1; FL-62KU-07 Cat.6 180 degree black jacks * 48)
